Nine Road Parking Vertical Circulation Stereoscopic Garage A safe and secure stereoscopic parking equipment brand

    Nine Road Parking has put safety in the highest position since its inception. It is an enterprise that has implanted the safety concept into the manufacture of mechanical three-dimensional garages. Taking safety as the starting point, it has created and invented more than 60 patents for three-dimensional garages (patent No. See http://www.jiuroad.cn/about/qyryc59.html), ten safety core technologies, five-star safety guarantee, and build a three-dimensional garage brand with safety guarantee in the world.

    Nine Road Parking is an enterprise with five-star safety guarantee, and it is also asafety technology training base for vertical circulation mechanical parking equipment in China.Training, safety star rating and certificate issuance and other related services, and carry out the five-star safety guarantee plan for the three-dimensional garage.

    As a safety guarantee plan covering the whole industry, it deeply understands the pain points of the industry, integrates the core resources of the upper, middle and lower reaches of the three-dimensional parking industry service chain, and will diversify and improve the safe use level of the three-dimensional parking industry. The wise go first, and the safety concept of nine-way parking is once again at the forefront of leading the industry.

    Quality wins, safety comes first, and innovation goes far. On the road of continuous innovation, Jiulu Parking integrates the concept of safety into every detail of design, technology, manufacturing, quality control, and service.



    1. High-strength, modular combination rack

    The high-strength and high-rigidity design of the combined frame is a prerequisite to ensure the safe operation and service life of vertical circulation mechanical parking equipment (the strength safety factor is designed to be greater than 2.5, and the verticality of the rack installation is controlled within ±2mm).

The design and manufacture of modularized and standardized combination racks can control the welding deformation caused by welding stress within 0.5/1000, and overcome the traditional "integral" racks caused by the continuous release of welding residual stress after long-term use. Deformation failure, or even the hidden danger of scrapping the entire equipment.

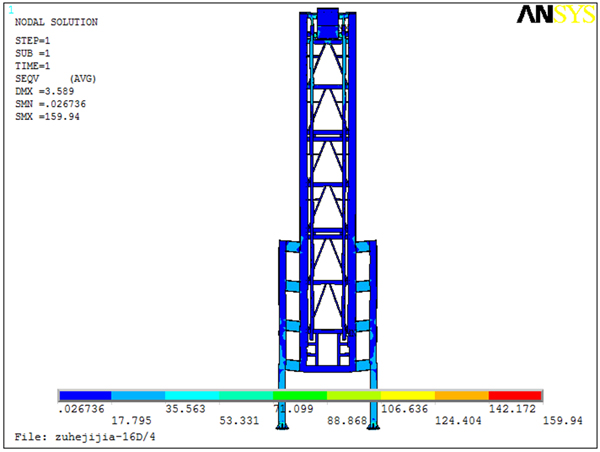

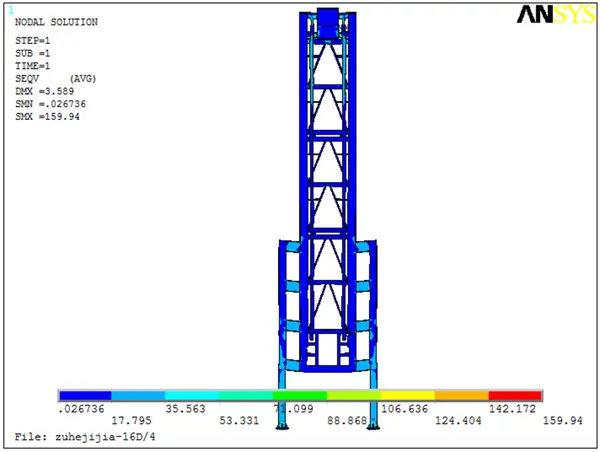

 Mises equivalent stress cloud diagram of combined rack

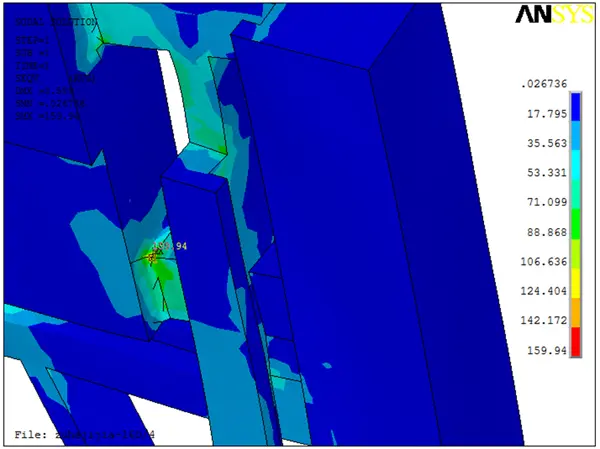

Partial enlarged view of equivalent stress cloud map



    Calculated graphical results: the stress value is 159.94 Mpa, which is the stress concentration value of the singular point caused by the sharp angle effect, which is ignored. Most of the stresses are below 71.099MPa, safety factor: k=235/ 71.099=3.31>3 (GB/3811 requires safety factor not less than 1.5).

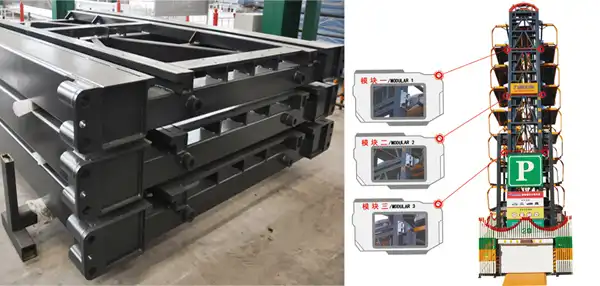

Modular, standardized combination rack

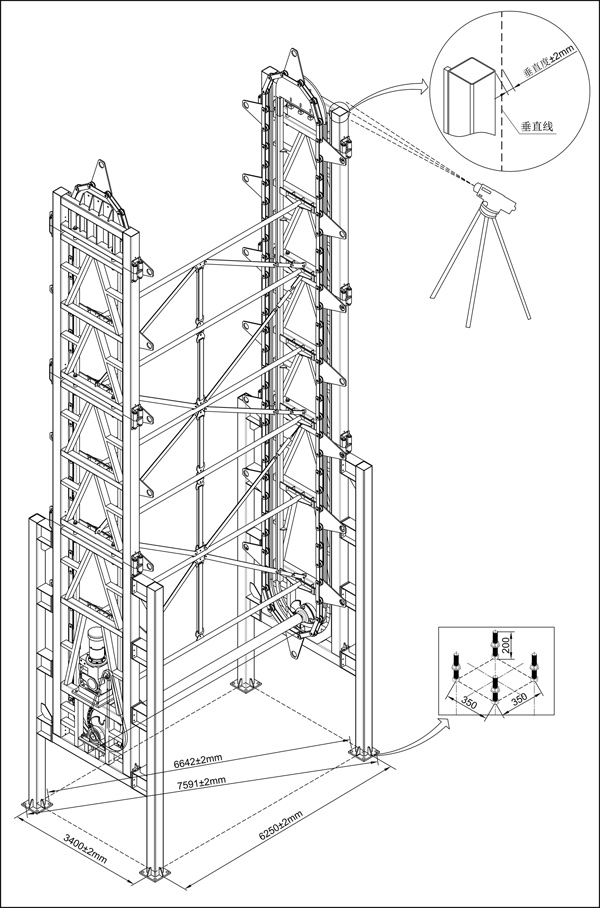

Combination Rack Mount Verticality Detection



    2. Upgrade the large chain to fully realize self-made and special matching

    The lifting chain is the core component of vertical circulation mechanical parking equipment, and its quality is related to the safety of equipment and personnel. The nine-way special chain has excellent material selection, high strength design value, and advanced manufacturing technology. The safety system of the chain is effectively guaranteed, which completely solves the worries of safe parking for users.

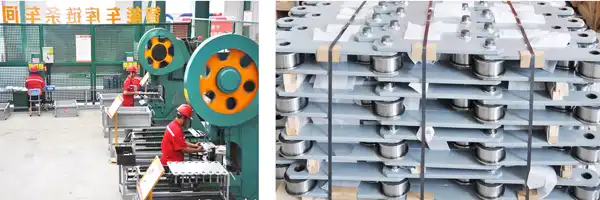

 A corner of the chain workshop                       special chain



     3. Intelligent safety anti-scratch device

    The safety gear lever + pusher system is used to realize the automatic lifting and lowering of the safety gear lever when accessing the car, preventing the damage to the car and machine caused by the door being opened accidentally when the garage is running, and the people stranded in the car pushing the door down when the garage is running car accident.

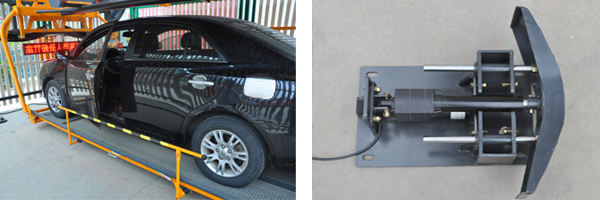

 safety bar                                           Combiner



   4. Ground sense intelligent security door

    Ground-sensing intelligent garage safety door, intelligent lifting, automatic anti-pinch, low noise and high speed. It is in the closed state when it is in standby to prevent people from entering by mistake and ensure safety.

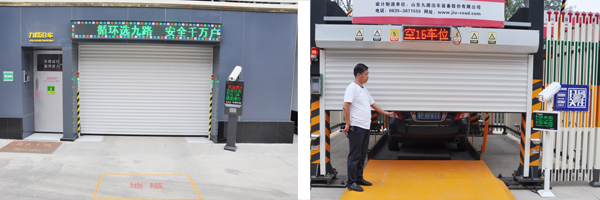

                                   Ground sense intelligent security door                     Safety door anti-pinch system



    5. Safety high guardrail

    The ultra-high safety guardrail is adopted, the height of the fence is 2.7m, the gap between the bottom of the fence and the ground is 12cm, and the gap between the fence guards is 4cm. The safety guardrail is based on the requirements of national special equipment standards, and is optimized by special design, which is safe and beautiful.

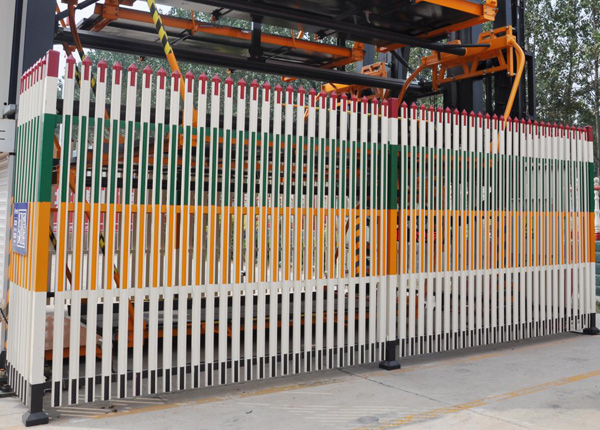

safety high guardrail



    6. Windproof and shockproof safety device

    Equipped with "wind-proof and earthquake-resistant device", it solves the problem of instability caused by strong wind load and earthquake load when the vehicle-carrying beam of the vertical circulation parking equipment runs to the top. Appraised by a third-party professional organization, it has reached the use environment requirements of wind resistance level 10 and earthquake resistance level 8.

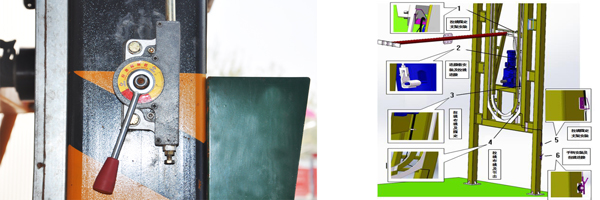

 Windproof and shockproof safety device



     7. Wheel stop safety device

    The wheel stop safety device uses the principle of weight depression + leverage to achieve 360° tire lock, effectively avoiding damage to the vehicle or machine due to the lateral movement or sliding of the vehicle under extreme working conditions such as strong wind, earthquake or hand brake failure. damage.

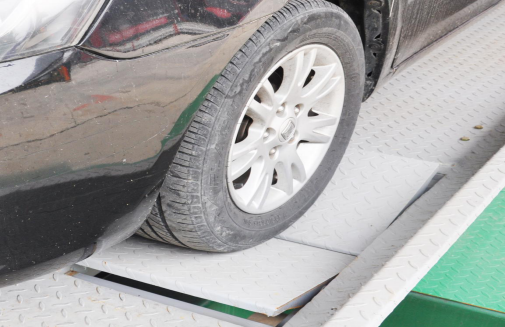

Wheel stop safety device

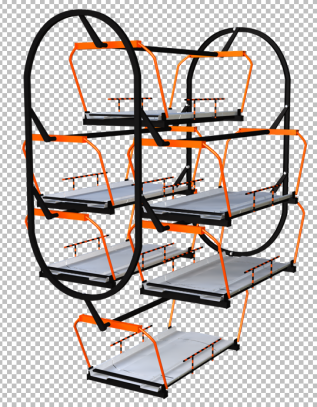

    8. Double closed-loop anti-swing safety system

    The "double closed-loop" anti-swing safety system completely solves the defect of "anti-swing neutral" in the upper and lower extreme positions of the vehicle-carrying tray. The stability and safety of the operation of the vehicle-carrying disc are reliably guaranteed.

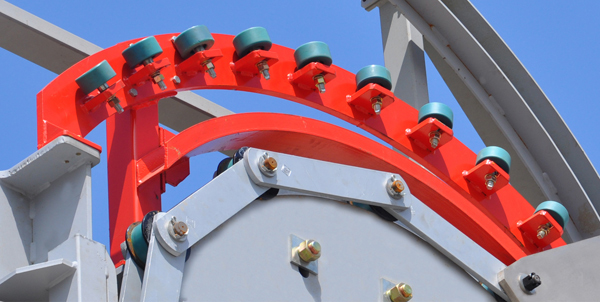

 Double closed-loop anti-sway safety system



    9. Power-off manual safety pick-up device

    The power-off manual safety car pick-up device is used to deal with abnormal power outages or dangerous power outages, and the car cannot be picked up by electric drive. The device can take out the vehicles one by one.





Power-off manual safety pick-up device

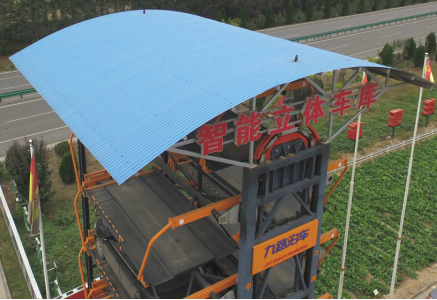

    10. Streamlined safety canopy

    The top surface of the safety rainproof shed device adopts an arc-shaped streamline aesthetic design, and the frame body conforms to the mechanical principle, achieving the effect of wind resistance level 10. The device can effectively protect equipment and vehicles from damage caused by extreme weather such as hail and acid rain or falling objects.



Streamlined safety canopy



    11. Gold Medal Service of Wolf Warriors Team

    Nine Road Parking Wild Wolf Installation Service Team - is an iron army service team built by the domestic parking industry with the wolf warrior culture and spirit. It is now set up as 4 teams, namely: "Red Wolf Team" and "Brown Wolf Team" Gray Wolf Team" and "Snow Wolf Team".

Their main combat task is to complete the installation, construction and post-maintenance services of parking equipment projects in accordance with standardized technical standards.

    Since its establishment, the Nine-Road Wild Wolf team has achieved a lot of battles, and has traveled all over the country and all over the world, and has been praised by the industry and abroad!

    high mountains, high roads, deep streams  wolf war gallop

    Who dares to slash immediately  Only My Nine Route Army





The hurricane and the storm have nothing to do with me, I stand still!

Nine-way parking vertical cycle three-dimensional parking lots that have been built or are under construction in Guangzhou, Shenzhen, Huizhou and other places have easily passed the extreme test of the strongest 16-level super hurricane "Mangosteen" in the past 20 years. Although "mangosteen" is powerful against trees, it is powerless against the nine-way parking vertical circulation three-dimensional garage, which highlights the good results of the supreme experience of the five-star security three-dimensional parking equipment and protects the safety of vehicles.

Quality awareness, craftsman spirit, and war wolf culture have injected strong innovation vitality into Jiulu Parking. Jiulu Parking has always stood at the forefront of the field of vertical circulation three-dimensional garages with a leading attitude all the way. With continuous safety innovation achievements and high-quality The service provides a good security new experience to the majority of users.

Choose nine roads for parking   Convenient for thousands of households
